POWER CENTER

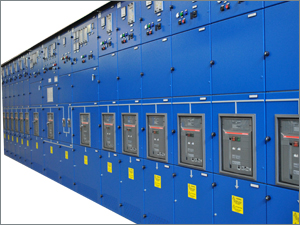

The Power Center is distribution switchgear developed for installation in electrical systems with high power and in the presence of considerable short-circuit currents.
This type of equipment must guarantee maximum safety to employees, continuity of service and easy inspection and maintenance.
Power Center fully meets these requirements.
Built in press formed metal sheet resistant to the electrodynamics forces generated by failure currents and to overloads due to the internal arch up to 100 kA. The structure is designed in such way that it allows access to the board from both the front as well as the back for maximum safety of the operator.

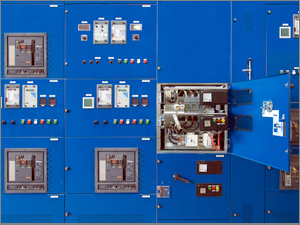

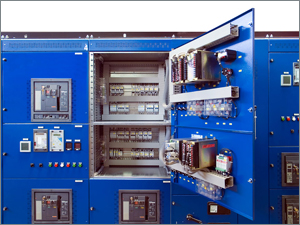

From the front you can access to the auxiliary and power components, always with the degree of protection IP 2X, even when the doors open
For major safety of the operator, the Power Center can be made to resistance internal arc for a fault current up to 65 kA for 0.3 sec.

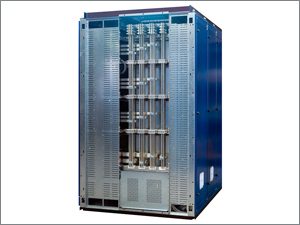

From the rear, you can access to the zone cables, to bus bars derivation properly segregated and to the auxiliary terminal… The switchboard is built with 4B segregation or lower depending on the equipment requirements. The main bus bars system is placed at the top of the switchboard
برند
Alfaquadri
