ELECTRICAL SPECIFICATIONS

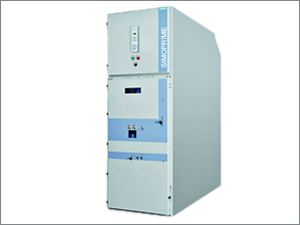

In addition, Alfaquadri is able to supply switchboard type Metaclad with rated voltage au to 36 kV starting from prebuilt solutions of the main manufactures MV equipment.Nominal Voltage (Un): up to 17,5 kVNominal Current (In): up to 3600 A Current c.to c.to (Icw): up to 40 kA per 3 sec.Internal Arch resistance: up to 40 kA per 1 sec.Panel size mm (LxHxP) 435/600/800x2425x1860The switchboard is in full compliance with IEC 62271-200
